NXW30-104
| Availability: | |
|---|---|
| Quantity: | |

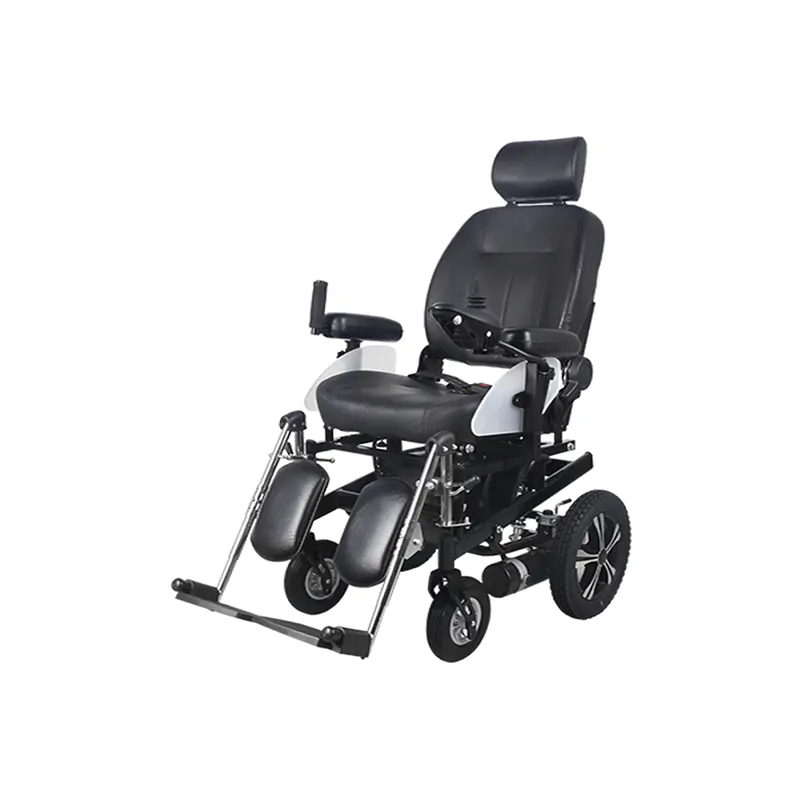

The NXW30-104 Heavy-Duty Steel Electric Wheelchair is a powerful and reliable mobility solution designed for long-term use and demanding environments.
Built with a reinforced steel frame, it provides exceptional stability, strength, and load capacity up to 120 kg, while maintaining smooth performance on flat roads or slopes up to 12 degrees.
This model combines durable structure, powerful dual motors, and portable folding design, making it the ideal choice for hospitals, rehab centers, and personal daily mobility.
The high-strength steel chassis ensures superior durability and stability compared with common alloy frames. It remains rigid under heavy loads and daily operation, extending product lifespan and reducing maintenance costs.
Equipped with two 24 V / 300 W brush motors, the NXW30-104 delivers strong torque and consistent traction. Users can easily drive on ramps, carpets, or outdoor pavements without losing control or speed.
With a 24 V 38 Ah high-capacity battery, the wheelchair runs up to 30 km per charge. Both lead-acid and lithium options are available to meet different export and airline standards.
The smart joystick controller allows 360° precise operation, adjustable speed levels, and responsive electromagnetic braking. Safety features include anti-tip wheels, overload protection, and reflective strips for night use.
Designed with convenience in mind, it folds within seconds without removing the battery. The compact folded size fits easily in a car trunk or elevator, enabling effortless storage and travel.
A high-back cushioned seat, breathable upholstery, and adjustable armrests and footrests provide all-day comfort. The widened seat and supportive structure reduce fatigue during long-distance rides.
Product Specification | |||
Item No. | XFGW30-104 | ||
Product Type | Electric wheelchair | ||
Container | 20GP | 40GP | 40HQ |
48pcs | 102pcs | 153pcs | |
Frame material | Steel | ||
Motor | 24V/300W*2 brush | ||
Battery | 24V 38AH (lead-acid battery) | ||
Loading capacity | 120kgs | ||
Charging time | 6-8h | ||
Speed | 0-6km/h | ||
Climbing ability | ≥12° | ||
Driving distance | 30kms | ||
Front wheel size | 8"（200*50mm）rubber solid | ||
Rear wheel size | 12"（320*60mm）rubber pneumatic | ||
Size | 104*64*124 cm | ||
Seat | W47*D48*T8cm,automatic 135°lie low&footrest up/down ,foldable | ||
N.W.(Wheelchair only) | 61kgs | ||
N.W.(battery) | Lithium:24V38Ah:24kgs | ||
Carton size | 700*630*795mm | ||
Specifications above are for reference only.For customized design,please contact Flybrother sales team. | |||
Hospitals and rehabilitation centers
Senior care facilities and nursing homes
Outdoor parks, shopping malls, and airports
Personal daily mobility or long-term travel
Distributors and OEM partners seeking durable power wheelchairs
Q1: What makes this wheelchair “heavy-duty”?
A1: The NXW30-104 is built with a reinforced steel frame and dual 24 V 300 W motors, providing strong torque and excellent stability.
It supports a maximum load of 120 kg and maintains rigidity even during long-term, high-frequency use, making it ideal for hospitals, care centers, and outdoor environments.
Q2: How far can the Heavy-Duty Steel Electric Wheelchair travel on a single charge?
A2: With a 24 V 38 Ah high-capacity battery, the wheelchair can reach up to 30 km (18.6 miles) per charge under normal conditions.
Both lead-acid and lithium battery options are available depending on your export or travel requirements.
Q3: Can the wheelchair be folded for transport or storage?
A3: Yes. The NXW30-104 features an auto-folding structure that allows it to fold within seconds without removing the battery.
The folded size (78 × 38 × 73 cm) fits easily into most car trunks and elevators.
Q4: Is the battery airline-approved for travel?
A4: The optional lithium battery version is designed to meet IATA standards (below 300 Wh) for most airlines.
However, passengers should always confirm with the airline before flying, as policies may vary by region.
Q5: What safety systems are included?
A5: The wheelchair is equipped with electromagnetic braking, anti-tip rear wheels, overload protection, and reflective warning strips.
These features ensure maximum user safety on ramps, uneven ground, and during emergency stops.
Q6: How long does it take to fully charge the battery?
A6: Charging time is approximately 6 – 8 hours for a full cycle.
Using the original charger is recommended to maintain battery life and performance.
Q7: Can I customize the color or logo for OEM/ODM orders?
A7: Yes. SINOVEHICLES offers OEM / ODM customization, including frame color, seat material, joystick type, and branding, to support distributors and global partners.
Q8: What is the warranty and after-sales policy?
A8: The NXW30-104 comes with a 12-month warranty covering the frame, motor, and controller.
Spare parts and technical support are available for long-term cooperation partners.
Q9: What terrain can this Heavy-Duty Steel Electric Wheelchair handle?
A9: Designed for versatility, it performs smoothly on indoor floors, pavements, light gravel paths, and gentle slopes .
Its large rear wheels and durable steel chassis provide strong traction and vibration absorption.
